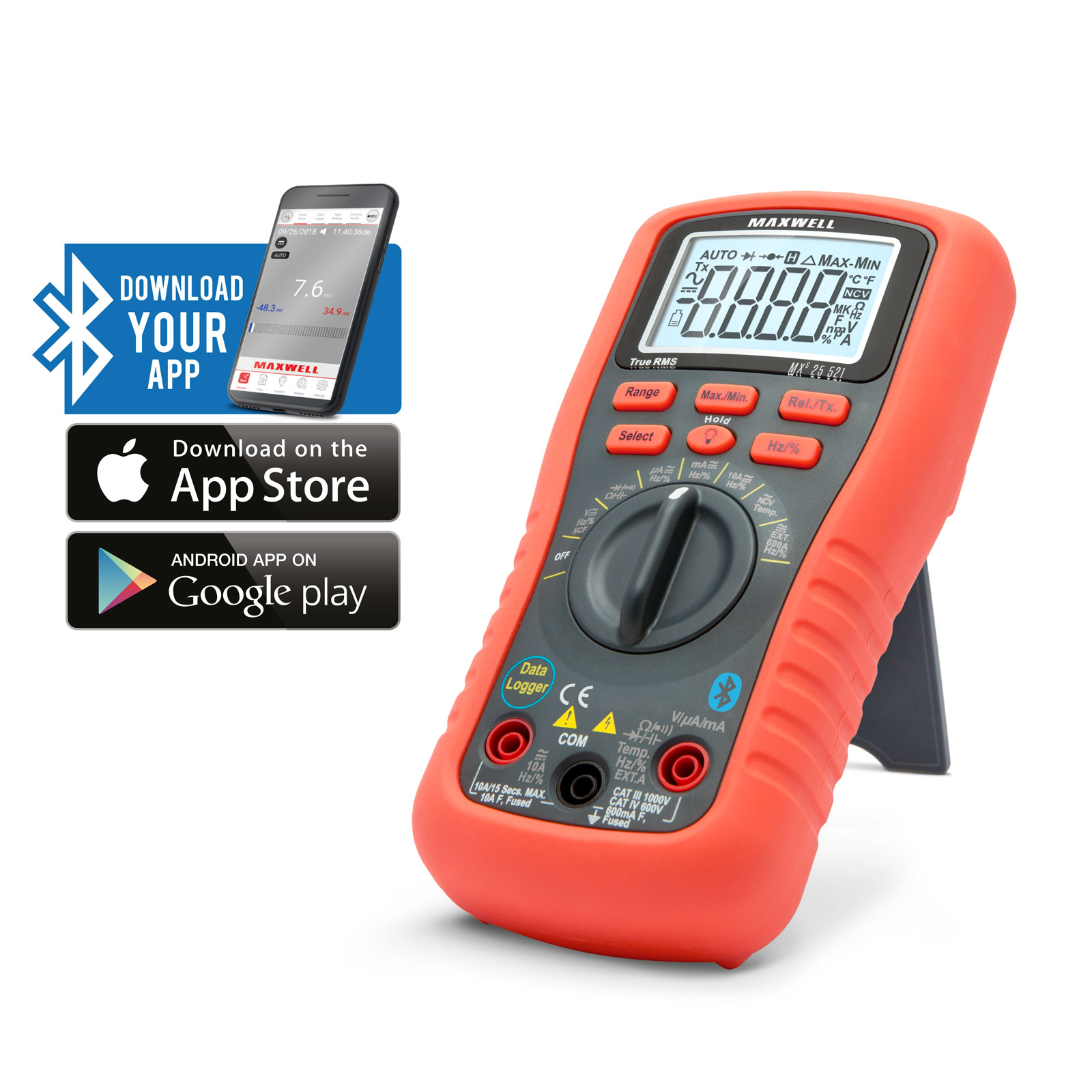

The software provides, for example, the ability to capture a photograph taken on a measurement, where the measured data is automatically subtitled, the GPS coordinates of the measurement, so it is not necessary to record it separately, but a LOG file can be created from the measurement history. The measurement values can be traced in a variety of forms on the mobile display. The backlit display helps you perform the measurement tasks in the dark. Sturdy housing and body design.
| Display: |
4 digit |
| AC V: |
0.1 mV - 600 V |
| DC V: |
0.1 mV - 1000 V |
| AC A: |
1 μA - 10 A |
| DC A: |
1 μA - 10 A |
| Resistance: |
0.1 Ω - 600 MΩ |
| Temperature: |
- 40 - + 1000 ° C |
| Capacity: |
0.01 μF - 100 μF |
| Frequency: |
0.001 Hz - 10 MHz |
| Size: |
185 x 95 x 55 mm |
| Diode test: |
 |
| PC connection: |
|
| Continuity test: |
|
| Beep: |
|
| Backlight: |
|
| Auto power-off: |
|
| Automatic range selection: |
|
| True RMS: |
|
| Data hold: |
|
| Relative data hold: |
|
Accessories:
• Maxwell software
• Battery (1 x 9V)
• Diode Test
• Continuity Test
• Transistor Test
• True RMS
• Sound indication
• Data Storage
• Backlight
• Automatic shutdown:
Accessories: Banana Thermometer, K-type Converter, Instrument Cord, Battery (1 x 9V)
Downloads:
User Manual
|
|
|
